Shielded vs Sealed Precision Ball Bearings: What's the Difference?
When selecting a precision miniature ball bearing for your equipment, one of the most frequently asked questions is whether to choose a shielded or sealed version. Both designs look similar from the outside, yet they perform very differently in real-world operating conditions. Choosing the wrong type can lead to premature failure, increased maintenance costs, and unexpected downtime.In this guide, we break down the structural differences, performance characteristics, and ideal applications for both shielded and sealed bearings — so you can make the right choice the first time.
What Is a Shielded Bearing?
A shielded miniature bearing uses a thin, stamped metal cover (typically steel or stainless steel) attached to the outer ring on one or both sides. The shield sits close to the inner ring but does not physically touch it, leaving a small labyrinth gap.
How It Works
The metal shield acts as a barrier against large particles such as dust, dirt, and debris. However, because there is a small gap between the shield and the inner ring, fine dust, moisture, and chemical vapors can still penetrate over time.
Key Advantages
Low friction: Since the shield does not contact the inner ring, there is almost no additional friction. This makes shielded bearings ideal for high speed miniature bearing applications where heat generation must be minimized.
High speed capability: Shielded bearings can operate at significantly higher rotational speeds than sealed equivalents, often reaching the limiting speed specified by the bearing manufacturer.
Low torque: The absence of contact friction means less power is wasted, which is critical in battery-powered devices such as small motors, handheld tools, and camera mechanisms.
Re-lubrication option: Single-shielded bearings (open on one side) can be re-greased during maintenance, extending service life.
Limitations
Not fully sealed against moisture, chemicals, or fine dust
Not suitable for washdown environments or outdoor exposure
Requires periodic maintenance and relubrication in harsh conditions
What Is a Sealed Bearing?

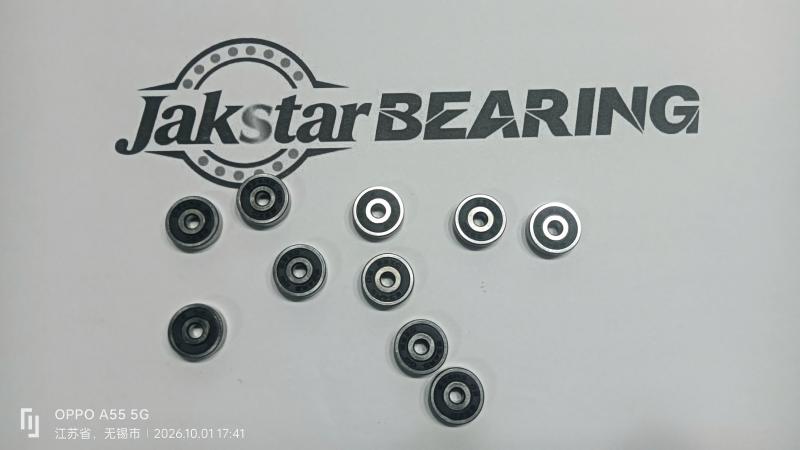

A rubber sealed miniature bearing uses a flexible synthetic rubber seal (commonly NBR, also known as Buna-N) that physically contacts the inner ring. This creates a tighter, more effective barrier against contaminants.
How It Works
The rubber lip presses against a precision-ground groove on the inner ring, forming a near-complete seal. The bearing is pre-lubricated with grease at the factory, and the seal keeps the grease inside while keeping contaminants out.
Key Advantages
Excellent contamination protection: The contact seal blocks dust, water, dirt, and most chemicals much more effectively than a shield.
Lubrication retention: Grease stays inside for the entire service life of the bearing, eliminating the need for re-lubrication.
Quiet operation: Sealed bearings tend to run smoother and quieter, making them ideal for low noise miniature bearing requirements in medical devices, office equipment, and home appliances.
Zero maintenance: Once installed, sealed bearings typically require no attention for years.
Limitations
Higher friction: The rubber-to-inner-ring contact generates more friction and heat, reducing maximum speed capability.
Not re-lubricatable: Once the grease breaks down, the bearing must be replaced.
Higher starting torque: More force is needed to overcome seal resistance during startup
Structural Comparison at a Glance
| Feature | Shielded Bearing | Sealed Bearing |
| Contact with inner ring | No | Yes (rubber lip) |
| Friction level | Low | Moderate to high |
| Maximum speed | High | Lower |
| Dust protection | Moderate | Excellent |
| Moisture resistance | Poor | Good to excellent |
| Lubrication | Can be re-greased | Sealed for life |
| Maintenance | Periodic | None required |
| Operating temperature | Typically -30°C to +110°C | Typically -30°C to +110°C (NBR) |
| Typical suffix code | Z or ZZ | RS, 2RS, or DDU |
Speed and Friction: Which Runs Faster?
If your application involves high rotational speeds — such as in small electric motors, spindles, or fans — a shielded bearing is almost always the better choice. The lack of contact friction means less heat buildup, lower power consumption, and longer grease life at high RPM.
Sealed bearings, on the other hand, generate more heat due to the rubber contact. While modern seal designs have reduced this friction significantly, a sealed bearing typically operates at 60–80% of the speed rating of an equivalent open or shielded bearing.
Environmental Protection: Which Blocks More?
If your equipment operates in a dirty, wet, or corrosive environment, choose sealed. Power tools, outdoor machinery, agricultural equipment, and food processing equipment all benefit from the superior protection of a rubber seal.
Shielded bearings are best suited for clean, dry environments such as office equipment, instrument panels, and indoor motors where the main concern is dust rather than moisture.
Lubrication and Maintenance
Shielded bearings can be re-lubricated, which is a significant advantage in applications where scheduled maintenance is possible. However, this also means someone must remember to do it.
Sealed bearings are greased for life at the factory. For most modern equipment, this is the preferred choice because it eliminates a maintenance task. The trade-off is that when the grease eventually breaks down — usually after several years — the entire bearing must be replaced.
Material Options: Stainless Steel Miniature Bearings
In addition to choosing between shielded and sealed, you may also consider the material. We offer stainless steel miniature bearing options (usually SUS440C) for applications where corrosion resistance is critical, such as medical instruments, food processing equipment, marine environments, and chemical processing. Stainless steel bearings are available in both shielded and sealed configurations, so you can combine corrosion resistance with the sealing type that fits your application.
Which One Should You Choose?
Choose Shielded If:
Your application runs at high speed
The environment is clean and dry
You need low torque and low friction
You can perform periodic maintenance
Common uses: small electric motors, computer fans, office equipment, measuring instruments, camera lenses
Choose Sealed If:
Dust, water, or chemicals are present
You want zero maintenance
Quiet operation is important
The bearing is difficult to access after installation
Common uses: power tools, outdoor equipment, home appliances, medical devices, automotive components

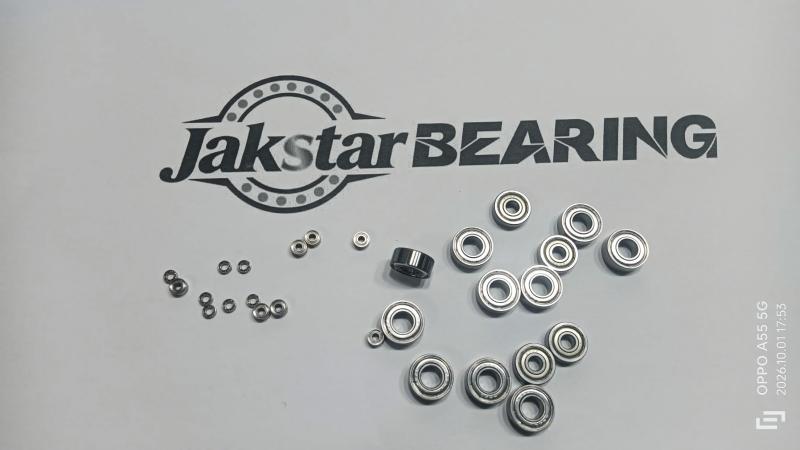

At the end of the day, both shielded and sealed bearings are available across our full range of miniature deep groove ball bearings in 60, 62, 63, 67, 68, and 69 series. The right choice depends entirely on your operating conditions, speed requirements, and maintenance expectations.
About Wuxi Jakstar Precision Bearing Co., Ltd.

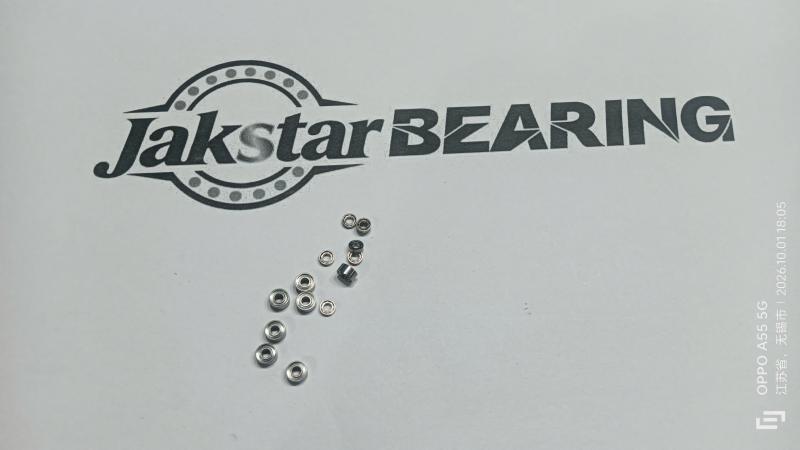

Wuxi Jakstar Precision Bearing Co., Ltd. is a professional miniature ball bearing supplier based in Wuxi, China — one of China's most important bearing manufacturing hubs. We specialize in precision miniature deep groove ball bearings, offering both shielded (ZZ) and sealed (2RS) options in bore sizes ranging from 1mm to 12mm.
