Miniature Deep Groove Ball Bearings Guide | Office Equipment & Printer Motor Bearings
Wuxi Jakstar Precision Bearing is a professional and reliable supplier specializing in high-precision miniature deep groove ball bearings. Focused on product optimization, quality screening and one-stop bearing supporting services, we have rich industry experience and strict quality inspection systems to deliver stable, cost-effective bearing solutions for the precision equipment industry. Our complete product lineup covers precision mini deep groove ball bearings, shielded miniature deep groove ball bearings, stainless steel miniature deep groove ball bearings, miniature deep groove ball bearing single row sets and matched miniature deep groove ball bearing replacement kits, fully adapting to the low-noise, high-speed and dust-proof usage demands of office equipment motors. Dedicated to serving global office equipment OEMs, procurement teams and equipment maintenance merchants, we support free sample testing, small-batch trial cooperation and customized parameter matching, accumulating long-term stable cooperative customers from Europe, Southeast Asia and the Middle East.
Modern office equipment relies heavily on compact, high-precision transmission components to maintain stable, quiet, and long-lasting daily operation. Among these core components, miniature deep groove ball bearings serve as the foundational support for various small motors and transmission structures in office devices. Unlike industrial heavy-duty bearings, bearings for office equipment motors prioritize low noise, high-speed stability, dust resistance, and ultra-compact dimensions, perfectly matching the lightweight and miniaturized design trends of modern printers, copiers, and scanners. This guide comprehensively analyzes the performance requirements, applicable models, selection standards, and application scenarios of miniature deep groove ball bearings for office equipment motors, helping equipment engineers and procurement professionals quickly select the most suitable micro bearings for office device projects
Modern office equipment relies heavily on compact, high-precision transmission components to maintain stable, quiet, and long-lasting daily operation. Among these core components, miniature deep groove ball bearings serve as the foundational support for various small motors and transmission structures in office devices. Unlike industrial heavy-duty bearings, bearings for office equipment motors prioritize low noise, high-speed stability, dust resistance, and ultra-compact dimensions, perfectly matching the lightweight and miniaturized design trends of modern printers, copiers, and scanners. This guide comprehensively analyzes the performance requirements, applicable models, selection standards, and application scenarios of miniature deep groove ball bearings for office equipment motors, helping equipment engineers and procurement professionals quickly select the most suitable micro bearings for office device projects.
What Are Miniature Deep Groove Ball Bearings?
Miniature deep groove ball bearings are a special category of small rolling bearings, generally defined as bearings with an inner diameter within 30mm and an outer diameter less than 40mm. Featuring a standard single-row structure, these miniature deep groove ball bearing single row sets can bear both radial and axial loads simultaneously, with low rotational friction, high concentricity, and stable high-speed operation performance. The mainstream product series include 61, 62, 63, 68, and 69 series, covering all size specifications required for small and micro motors of office equipment. As core precision components,precision mini deep groove ball bearings are tailor-made for the compact and high-precision working conditions of modern office devices.
Different from ordinary industrial bearings,miniature deep groove ball bearings for office equipment motors adopt optimized internal clearance and low-noise grease filling technology. We also provide practical miniature deep groove ball bearing replacement kits, which are convenient for equipment maintenance and part replacement of printers, copiers and scanners. They are pre-lubricated before leaving the factory, achieving maintenance-free operation in the whole service life, which fully adapts to the long-term continuous standby and intermittent start-stop working state of office equipment. Their compact structure saves valuable internal space for precision office devices, becoming the preferred bearing type for modern office intelligent equipment transmission systems
Main Bearing Series for Office Equipment Motors.Each series of miniature deep groove ball bearings has unique dimensional characteristics and performance advantages, corresponding to different power and structural requirements of office equipment motors. For laser printers, copiers, document scanners, and other mainstream office devices, the following five series are the most widely used and cost-effective:
68 Series Miniature Bearings: Ultra-thin and ultra-compact design, with small outer diameter and width, suitable for ultra-thin office equipment motors and narrow transmission structures. As the core model of low noise micro bearing for laser printer, it performs excellently in high-speed paper feeding and scanning transmission structures, with extremely low vibration and silent operation effect.
69 Series Miniature Bearings: Balances compact size and load-bearing capacity, with higher structural stability than 68 series. It is the mainstream model for copier drive motors and scanner transmission motors, and is widely recognized as reliable 68 series bearing for copier motor alternative models in the office equipment industry.
61/62/63 Series Small Bearings: Slightly larger in size, with enhanced radial load capacity, suitable for high-power office equipment motors and long-term continuous operation scenarios, such as high-speed commercial printers and multi-functional all-in-one office equipment.

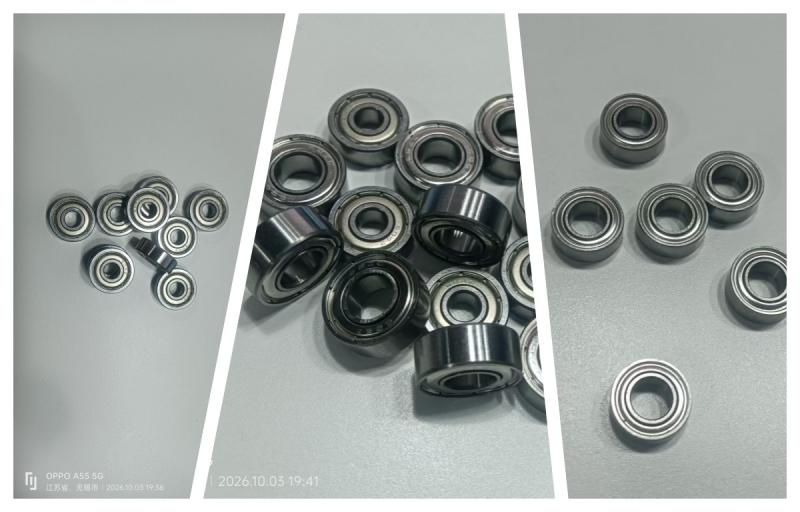

All the above series support ZZ double iron shield sealing and 2RS rubber sealing options. These shielded miniature deep groove ball bearings have excellent dust-proof and anti-pollution capabilities, effectively avoiding paper dust, fine dust and other impurities from entering the bearing interior to cause noise and wear. For special office working environments with high humidity and anti-corrosion requirements, we also supply stainless steel miniature deep groove ball bearings, which feature rust resistance, high durability and stable long-term operation performance.
Key Performance Requirements for Office Equipment Motor Bearings
Office equipment has extremely strict operating environment and working condition requirements, so small deep groove ball bearing for document scanner and other office-specific bearings need to meet four core performance standards, which are also the key indicators for engineering selection and supplier evaluation:
1. Ultra-low Noise Operation: Office scenarios require a quiet working environment, and abnormal noise from equipment will directly affect office experience and product qualification rate. Qualified office equipment miniature bearings adopt high-precision steel balls and polished raceways, with uniform grease distribution. Our precision mini deep groove ball bearings effectively reduce running friction noise, and realize silent operation during high-speed rotation, fully meeting the quiet operation standards of commercial office equipment.
2. High-speed Operational Stability: Printer paper feeder motors and scanner drive motors need frequent high-speed start-stop and continuous rotation. Miniature deep groove ball bearings for office equipment are optimized in internal clearance and cage structure, which can maintain stable operation for a long time under high-speed working conditions without jitter or stuck failure.
3. Excellent Dust Resistance: Printers, copiers and other equipment will continuously produce paper dust and fine toner dust during operation. Our shielded miniature deep groove ball bearings with ZZ and 2RS sealed structures can effectively isolate external pollutants, prevent dust from entering the bearing interior to cause abrasive wear, and extend the service life of bearings and equipment. For office equipment that needs frequent maintenance and part replacement, our matched miniature deep groove ball bearing replacement kits can greatly improve maintenance efficiency.
4. Long Service Life and Maintenance-Free: Office equipment is often used continuously for thousands of hours. Professional office bearings use high-quality chrome steel raw materials and high-temperature and wear-resistant grease, with stable performance and no need for secondary refueling maintenance, reducing equipment failure rate and after-sales maintenance cost.
Common Use Cases of Mini Bearings in Office Equipment Motors
Miniature deep groove ball bearings are applied in the core transmission and power parts of almost all precision office equipment. Relying on the advantages of compact size, low noise and high speed, they ensure the precise operation of various functional modules of office equipment. The mainstream application scenarios are as follows:
Laser Printer Paper Feeder Motors: The paper feeding structure of laser printers needs precise and stable rotational power to realize uniform paper output. Compact miniature bearing for office machinery is installed in the paper feeder drive motor, adapting to frequent start-stop and high-speed rotation, ensuring smooth paper feeding and avoiding paper jam and deviation problems caused by unstable bearing operation.
Copier Drive & Scan Assembly Motors: Commercial copiers have complex transmission systems, including scanning module drive, paper transfer and roller rotation. 68 and 69 series miniature bearings are used in copier core motors, with stable load-bearing performance, ensuring long-term continuous operation of copiers and improving equipment work efficiency.
Document Scanner Transmission Motors: High-precision scanners require extremely high transmission accuracy to ensure clear and complete scanning images. Micro bearings used in scanners have high concentricity, effectively reducing transmission deviation, ensuring synchronous and stable operation of scanning rollers and transmission belts, and avoiding image distortion caused by mechanical vibration.
How to Select Miniature Bearings for Office Equipment Motors
Reasonable bearing selection is the key to ensure the stable operation of office equipment. Engineers and purchasers can select targeted models according to equipment power, installation space, working environment and performance requirements, following the following core selection steps:
Step 1: Confirm Dimensional Parameters: Precisely measure the inner diameter, outer diameter and width of the installation position, and match the corresponding 61/62/63/68/69 series standard bearings. For ultra-thin mini office equipment, priority is given to 68 and 69 series ultra-compact models.
Step 2: Select Sealing Type: For ordinary indoor dust-free office environments, ZZ double iron shield sealed bearings are cost-effective; for printing rooms with more paper dust and toner dust, 2RS rubber sealed bearings with better dust resistance are recommended to enhance anti-pollution ability.
Step 3: Match Precision Grade: Ordinary civil office equipment adopts P0 ordinary precision bearings to meet daily use; high-end commercial intelligent office equipment and high-precision scanning equipment need P6/P5 high-precision bearings to ensure transmission accuracy.
Step 4: Confirm Working Conditions: For equipment with long-term continuous high-speed operation, select bearings with increased clearance and high-temperature resistant grease to avoid failure caused by thermal expansion; for intermittent start-stop equipment, standard clearance models can be used.
Seal & Material Options for Office Device Bearings

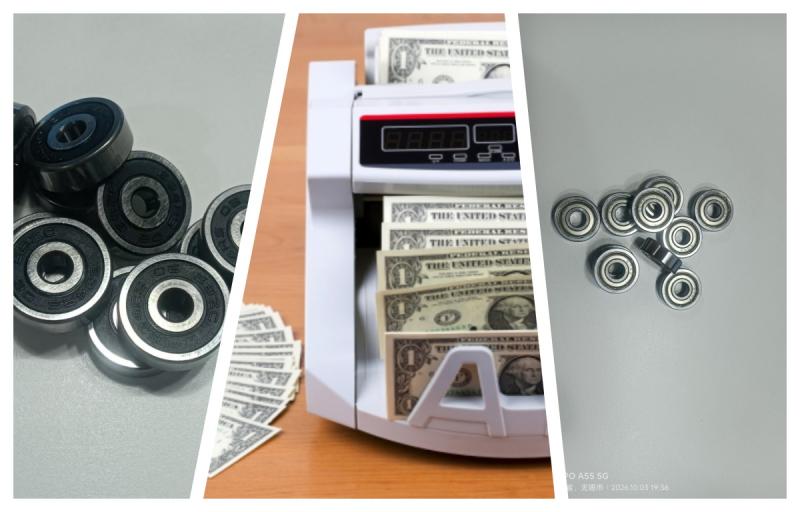

The material and sealing structure of miniature bearings directly determine their adaptability and service life in office scenarios. We provide two mainstream material types for office equipment bearings: conventional high-quality bearing chrome steel and corrosion-resistant stainless steel miniature deep groove ball bearings, both with high hardness, wear resistance and anti-deformation ability, which can adapt to long-term repeated operation of office equipment.
In terms of cages, two options are available: steel stamping cages and nylon cages. Steel cages have high structural stability and are suitable for high-speed continuous operation scenarios; nylon cages have low noise and good toughness, which is more suitable for civil office equipment that pursues silent effect. In terms of lubrication, all bearings are filled with low-noise high-speed special grease, which has low volatility and stable lubrication performance, ensuring no noise and no oil leakage during long-term operation.
The two mainstream sealing structures cover all office scenario needs: ZZ double-sided iron shield sealing, with simple structure and small rotation resistance, suitable for clean and dry office environments; 2RS double-sided rubber sealing, with tight sealing performance, effectively isolating fine dust and moisture, suitable for complex printing workshop environments.
Frequently Asked Questions about Office Equipment Mini Bearings
Q1: What is the most common bearing model for printer motors?A: 68 and 69 series miniature deep groove ball bearings are the most mainstream models for printer motors. With compact size and low-noise performance, they fully meet the high-speed and silent operation requirements of printer paper feeding and scanning motors.
Q2: Why do office equipment bearings need dust-proof sealing design?A: Printers and copiers will produce paper dust and toner dust during operation. Unsealed bearings are easy to accumulate dust, resulting in increased operating noise, stuck rotation and shortened service life. ZZ/2RS sealing structure can effectively avoid dust pollution.
Q3: Can miniature bearings for office equipment be used for a long time without maintenance?A: Yes. Professional office-specific miniature bearings are pre-filled with high-performance grease before leaving the factory, with good airtightness. They can realize long-term maintenance-free operation and meet the 3-5 year service life requirements of ordinary office equipment.
Q4: How to solve the noise problem of office equipment bearings?A: The noise of office bearings is mostly caused by insufficient precision, unqualified grease or dust entering. It is recommended to select high-precision low-noise special bearings for office equipment, and prioritize sealed models to ensure clean internal operation environment.
Get Custom Miniature Bearing Solutions for Office Equipment

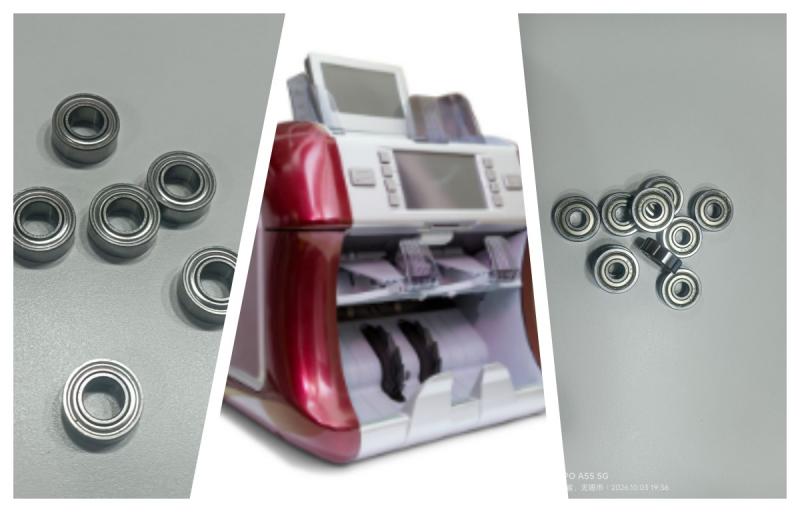

We specialize in the supply of high-quality miniature deep groove ball bearings with bore sizes within 30mm, covering all 61, 62, 63, 68, 69 series models. Our product lineup includesprecision mini deep groove ball bearings, shielded miniature deep groove ball bearings, stainless steel miniature deep groove ball bearings and miniature deep groove ball bearing single row sets, as well as supporting miniature deep groove ball bearing replacement kits. Focusing on office equipment motor supporting scenarios, we provide low-noise, dust-proof, high-speed stable micro bearings for printer, copier and scanner manufacturers. We support free sample testing, small-batch trial orders and customized precision solutions, helping office equipment brands optimize product performance and reduce failure rates.
If you are looking for reliable miniature bearing suppliers for your office equipment motor projects, feel free to contact us for parameter matching, quotation and sample arrangement.
