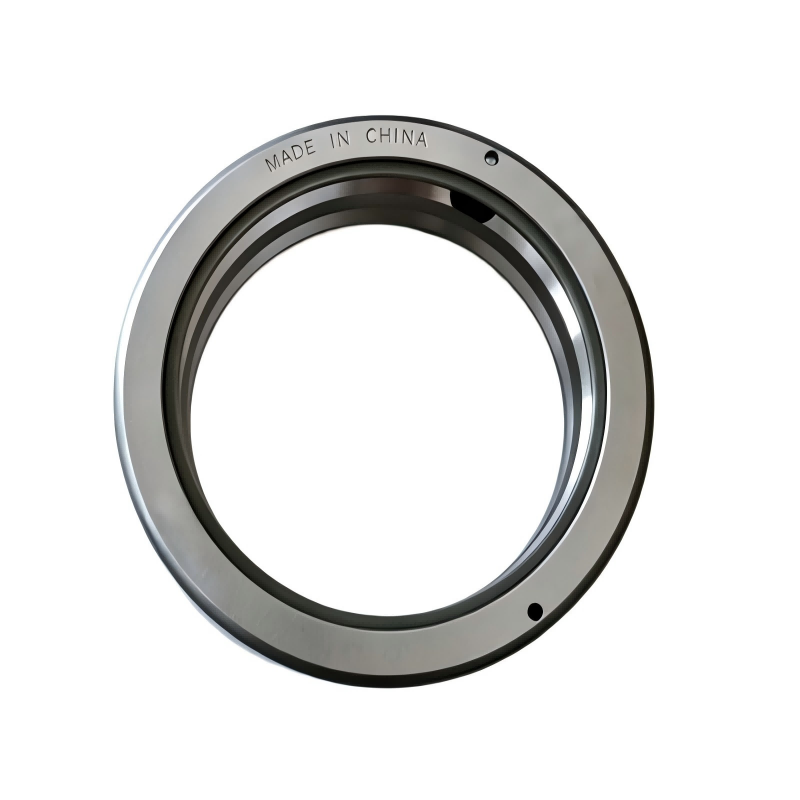

Custom Non-Standard Cross Roller Bearings
【Accurately match your precision rotary equipment requirements】
Custom High Precision Non-Standard Bearings – Tailored Bearing Solutions For Specialized Equipment 【Break Through The Limitations Of Standard Bearing Sizes】 If standard bearings cannot match your unique assembly space, installation structure or special working conditions, custom non-standard bearings are your ideal solution. We develop bearings strictly according to your drawings, samples and technical indicators. Jakstar Bearing delivers targeted customized bearing solutions to meet personalized equipment operation demands.
【Core Parameters 】
| Item | Specification | Item | Specification |
| Custom Range | Non-standard cross roller bearing, split outer ring / inner ring structure, special installation hole layout | Custom Basis | Engineering drawings, physical samples, load & precision requirements |
| Customizable Dimensions | Inner bore, outer diameter, overall width, mounting hole position and size | Precision Class | P0 / P6 / P5 / P4, negotiable |
| Raw Material | GCr15 chrome bearing steel, 420 stainless steel optional | Internal Preload | Light preload, medium preload, heavy preload customizable |
| Sealing Type | Open type, contact & non-contact rubber seal | Structure Type | Wuxi, China |
| Packing | Plastic film, export carton, wooden pallet | Origin | FOB / CIF / EXW, sea & air shipping supported |
| Sample Policy | Custom samples available; sample cost can be deducted from bulk orders | Trade Terms | FOB / CIF / EXW, sea & air shipping supported |
【Technical hard Power - Why Choose Us】
Custom Structural Design: We adjust overall dimensions, modify mounting hole distribution, optimize roller arrangement and fit preload structure to adapt compact rotary installation space. Solve assembly barriers that standard cross roller bearings cannot accommodate.
Precision Machining Control: All customized cross roller bearings adopt ultra-precision grinding process. Strict geometric tolerance control lowers rotation torque fluctuation, ensures high rotary accuracy for long-term continuous operation.
Diversified Material Matching: Stainless steel material optional for humid, corrosive working environments; high-hardness chrome bearing steel for heavy-load, frequent rotation working conditions to extend bearing service life.
High Rigidity Feature: Cross arrangement rollers enable the bearing to bear radial load, axial load and overturning moment simultaneously, ideal for rotary tables, robot joints and precision automation rotary platforms.
