Custom Miniature Bearing with Protective Cap

This customer case focuses on our custom miniature bearing fitted with a red protective shaft cap, developed to solve a practical production pain point from our client in the precision transmission industry. Standard off-the-shelf miniature bearings cannot match every special assembly and protection requirement for high-speed precision equipment. Our client reached out to us with a clear challenge: their exposed bearing shaft tip has ultra-high precision, and scratches, dust contamination during transit, storage and material preparation would directly lead to assembly failure, abnormal running noise and high product rejection rate.

Customer Background & Project Requirement Our customer is a professional manufacturer of high-speed precision handheld equipment, who supplies finished components for multiple downstream precision industries. Their product assembly space is compact, and the rotating shaft end of the miniature bearing is exposed outside the housing before final assembly. During the original supply chain process, bearings without protection caps often suffered surface damage after warehousing and transportation. Even minor scratches on the mating shaft surface would destroy the runout tolerance, resulting in unstable high-speed operation of the finished handpiece. The client needed a custom bearing solution with integrated shaft protection, while keeping strict tolerance, low noise and high rotational speed performance. The core requirements submitted to our engineering team:

1.Keep the bearing’s original precision and high-speed performance;
2. Add removable protective caps pre-installed at factory to cover the precision shaft tip;
3.Support stable batch delivery, with 100% dimensional and appearance inspection;
4.Accept non-standard dimension adjustment if iterative design changes are needed in the future.

Our Custom Solution for This Project
After drawing review, tolerance analysis and sample verification, our R&D and production team delivered the final custom miniature bearing with protective cap.

• Red PE Shaft Protective Cap Design

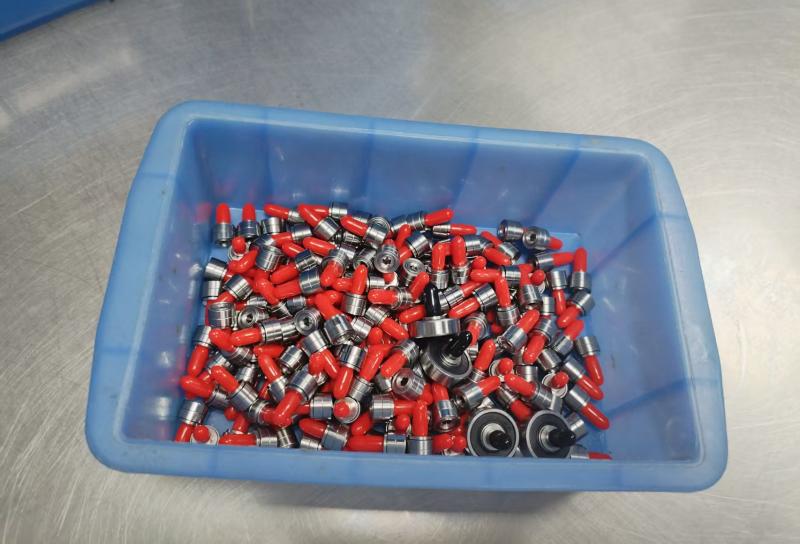

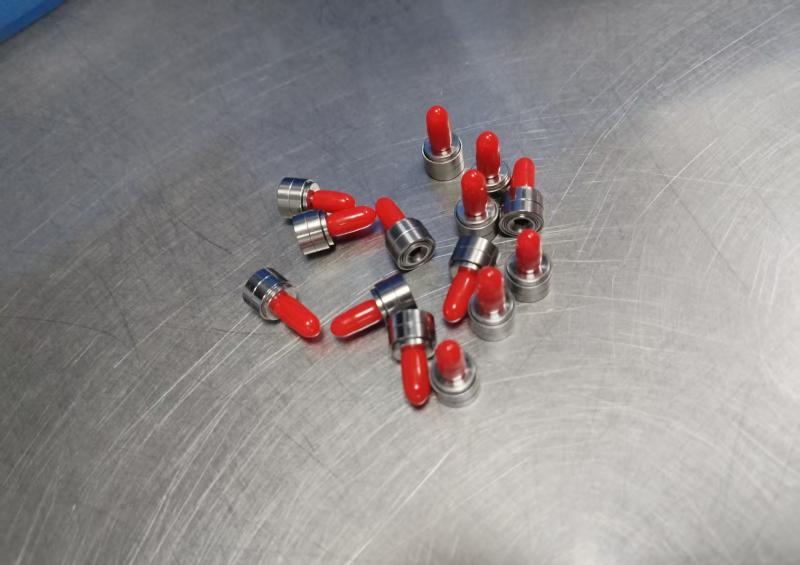

  We adopted a custom-sized red plastic protective cap, pre-assembled on the bearing shaft before packaging. The cap fits tightly on the precision mating surface. It stays intact through shipping, stock management and the client’s internal material circulation, and can be quickly peeled off only on their final assembly station. This simple customized structure effectively isolates dust, fingerprints and accidental friction.

• High Precision Bearing Body

  The bearing substrate is made of high-quality chrome steel, with precisely ground raceways. Precision grades P0, P6 and P4 are optional to match different speed and noise specifications. It maintains smooth rotation, low friction and stable concentricity under continuous high-speed working conditions.

• Strict Batch Quality Control Workflow

  The whole production follows a standardized quality loop: technical drawing evaluation → prototype production and performance test → formal batch manufacturing → full visual & dimension inspection → dust-proof independent packaging. Every finished bearing is checked one by one before shipment to guarantee consistency.

• Flexible Non-Standard Customization Service

  Beyond this fixed protective cap structure, we can customize bore size, outer diameter, width, sealing structure, internal clearance, chamfer and flange according to customers’ drawings or physical samples. Small trial batches are supported for verification before mass order placement.

Applicable Industries & Application ScenariosThis type of custom miniature bearing with protective cap is widely adopted for equipment that has exposed precision shaft ends, strict surface protection and high-speed rotation requirements. Dental turbine handpiece industry: The most typical application. Dental turbines run at ultra-high speed, the shaft mating surface is extremely sensitive to scratches and dirt. Pre-installed protective caps greatly reduce defective rate during component turnover. Micro CNC high-speed spindle: Small precision spindles used for engraving, micro grinding and micro machining require minimal runout. Shaft protection avoids precision loss before assembly. Miniature robot joints & automated gripper: Compact robot rotary joints, small rotating execution units and testing fixtures with limited installation space. BLDC micro motor: Hollow cup motors, gimbal motors, miniature drive motors used for camera stabilizers and optical rotating modules. Optical testing instruments: Precision rotary platforms, focusing adjustment components and optical inspection equipment, where even tiny dust will interfere with testing accuracy. Cosmetic high-speed handpiece: High-speed grinding, polishing and peeling beauty handpieces that run continuously at high rotation speed. Aerospace miniature instruments & gyroscope shafts: Miniature sensing and gyroscopic rotating parts that demand high reliability and stable friction performance. High-speed grinding spindles for precision polishing equipment

Project Outcomes & Customer Feedback
After sample testing and formal mass delivery, this custom miniature bearing solved the client’s long-standing incoming quality issue.
 ✅ Scratch and dust damage on the exposed shaft end was almost eliminated; the client’s rework and rejection cost dropped significantly.
 ✅ No modification needed on the customer’s existing assembly line. Operators only remove the red cap right before installation, which brings no extra complex operation.
 ✅ Bearing noise, runout and service life fully meet their finished machine’s technical indicators.
 ✅ Our flexible customization capability supports them to adjust bearing parameters when they upgrade new product versions. The client has established stable repeat orders after the validation phase. This case proves that customized bearing structural optimization is an efficient way to solve hidden quality risks caused by logistics and production turnover, instead of only relying on standard catalog bearings.

How to Start Your Own Custom Bearing Project

If you also encounter problems such as limited installation size, special tolerance requirements, exposed precision shaft protection, special clearance or sealing needs, our Jakstar engineering team can provide targeted miniature bearing customization solutions. Send your technical drawings, samples or detailed technical specifications to us. We will complete professional assessment, quotation and sample arrangement for you. Small trial orders are welcome for performance verification. Get in touch with us for custom miniature bearing solutions that fit your equipment perfectly.
